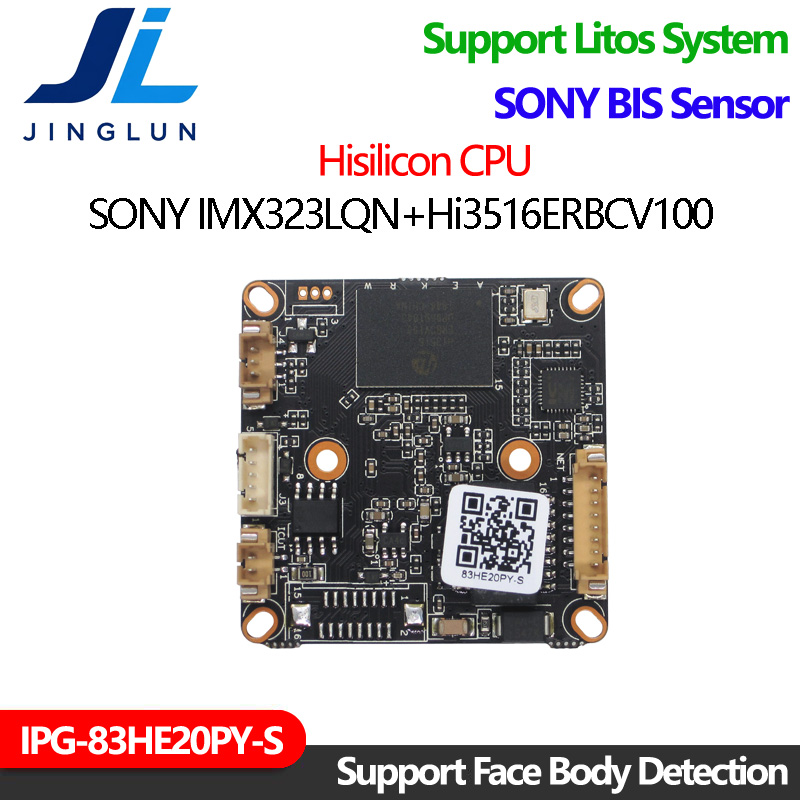

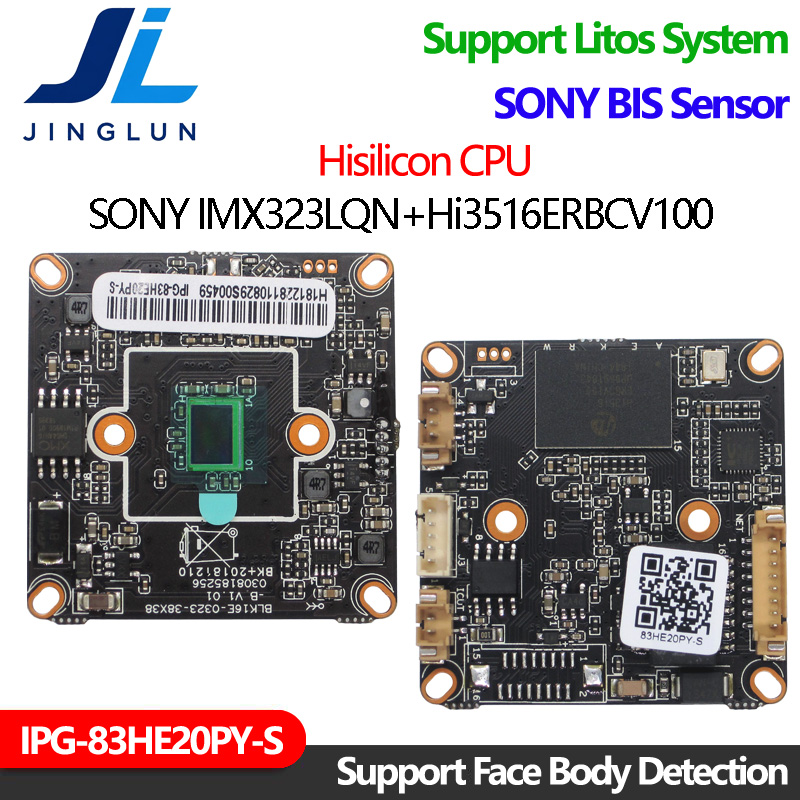

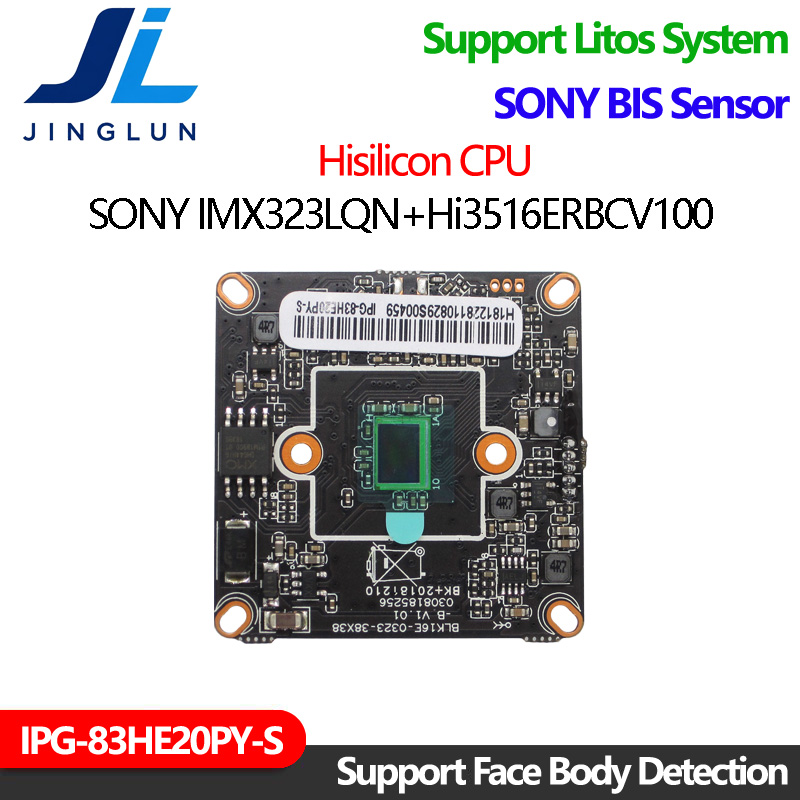

IPG-83HE20PY-S
IPG-83HE20PY-S photo 1 IPG-83HE20PY-S photo 2 IPG-83HE20PY-S photo 3 IPG-83HE20PY-S photo 4

IP CAMERA MODULE

IPG-83HE20PY-S

A low-illumination module pairing the Sony IMX323 with the Hi3516EV100 on a standard 38×38mm board. H.265 / H.265X compression, IR-CUT day/night, two-way audio, face and human detection on Litos firmware, and anti-lightning protection rated to GB/T17626.5.

  • Resolution2MP 1080P · 3MP supported
  • SoCHiSilicon Hi3516EV100
  • SensorSony IMX323 · 1/2.9"
  • VideoH.265 / H.265X / H.264 dual stream
  • AIFace & human detection
  • AudioTwo-way, G.711
  • Day / nightIR-CUT
  • ProtectionAnti-lightning GB/T17626.5
  • Board38 × 38mm

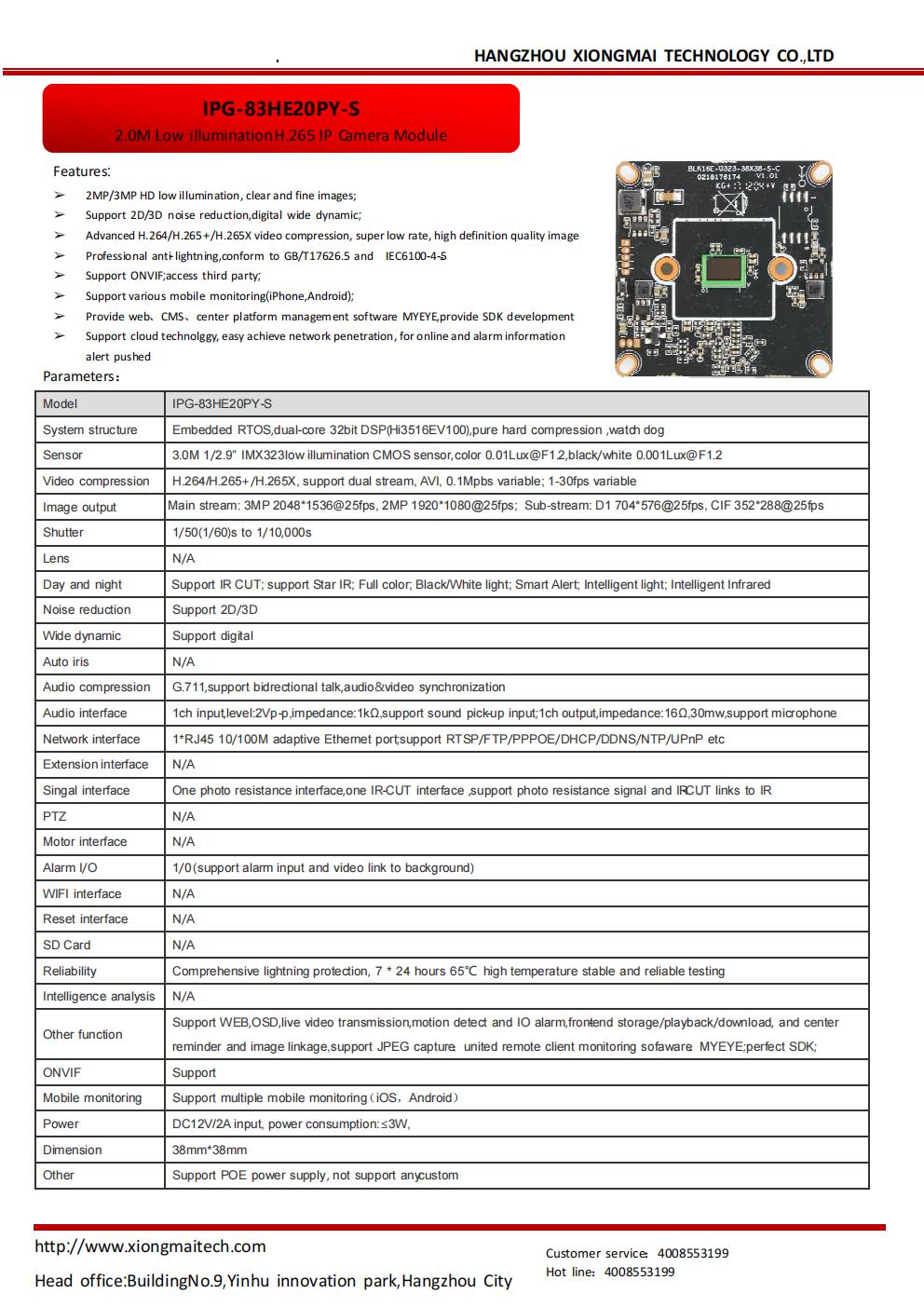

Parameters (PDF) ↓
Request a quotation
