MC-800S (V5)
MC-800S (V5) photo 1 MC-800S (V5) photo 2 MC-800S (V5) photo 3 MC-800S (V5) photo 4 MC-800S (V5) photo 5 MC-800S (V5) photo 6 MC-800S (V5) photo 7 MC-800S (V5) photo 8 MC-800S (V5) photo 9 MC-800S (V5) photo 10 MC-800S (V5) photo 11

OPENIPC CAMERA MODULE

MC-800S (V5)

The next generation of the 800S platform. Sony IMX415 with the newer SigmaStar SSC378QE pushes 4K at 20fps, ships OpenIPC-ready, and keeps two-way audio plus TF-card expansion.

  • Resolution4K (3840 × 2160)
  • Frame rate20 fps
  • SensorSony IMX415
  • SoCSigmaStar SSC378QE
  • AudioTwo-way
  • StorageTF-card expansion
  • FirmwareOpenIPC

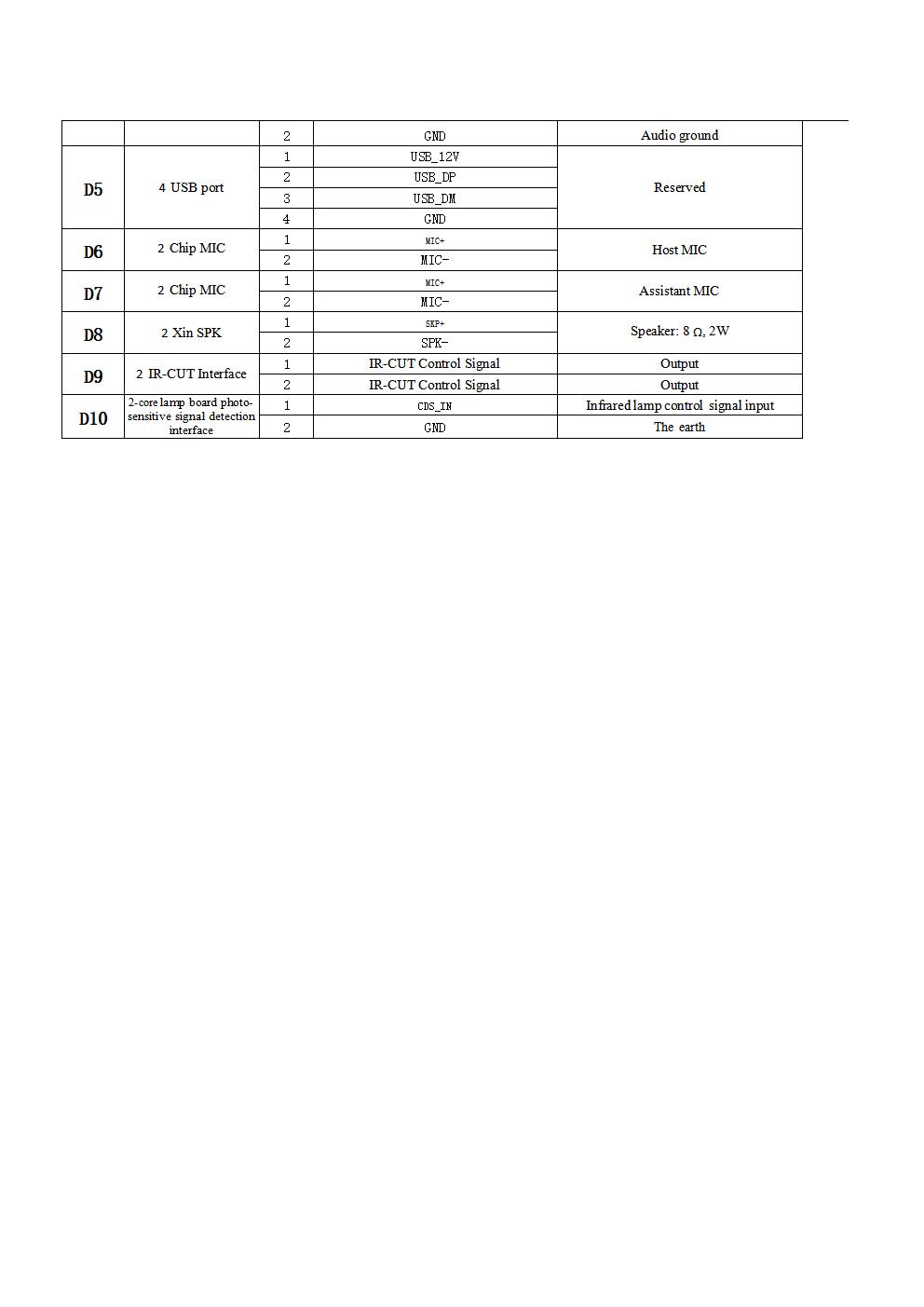

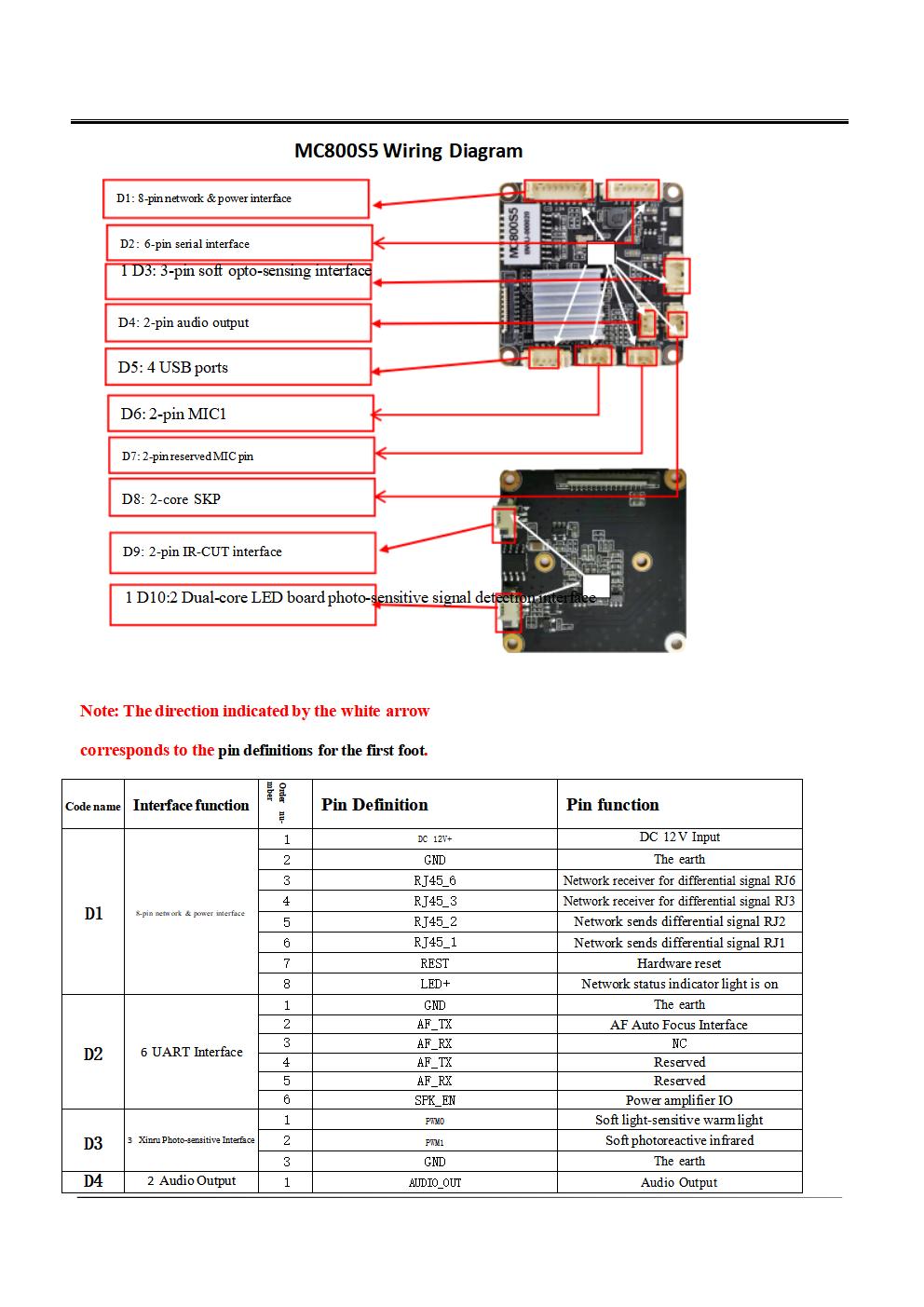

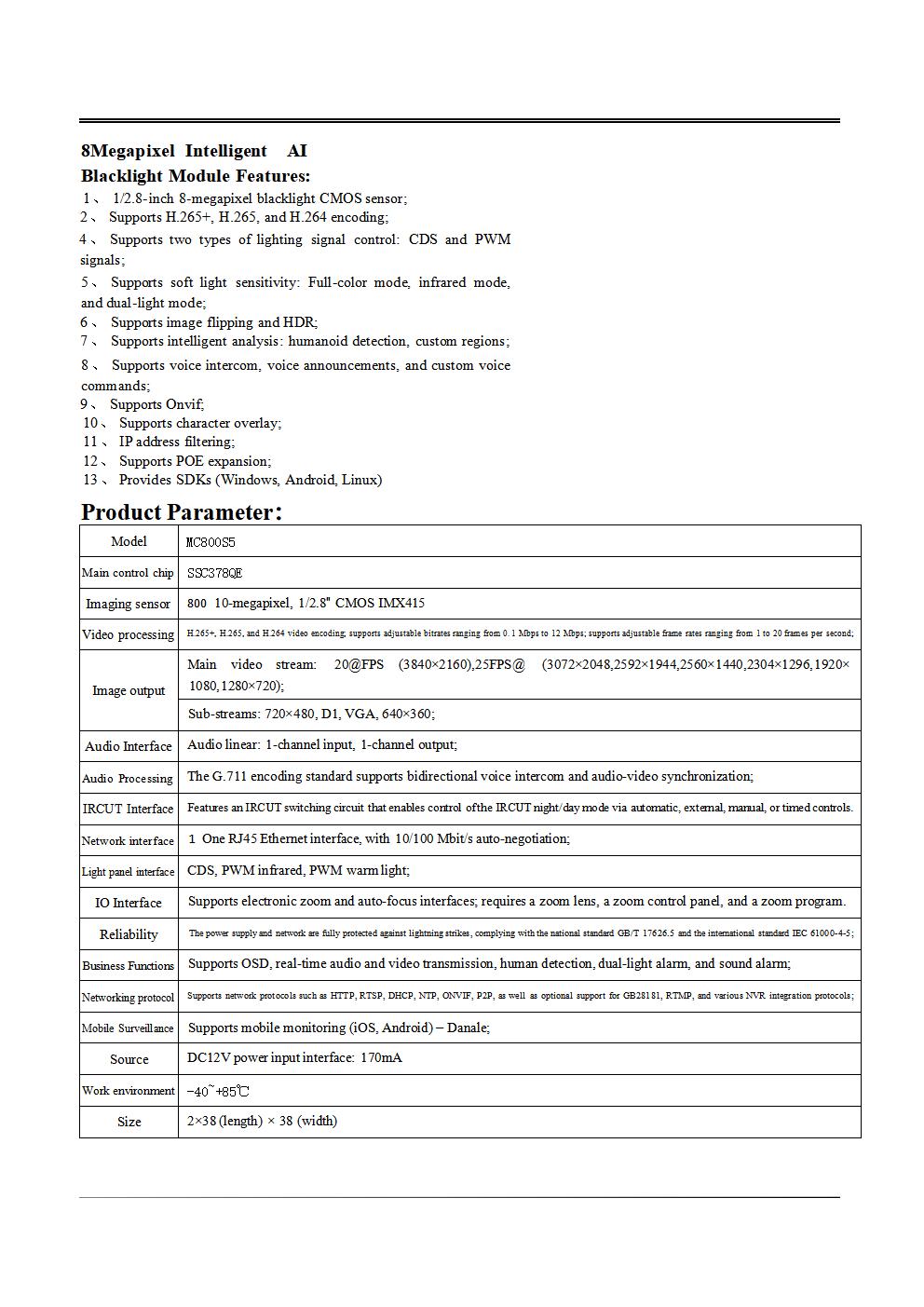

Datasheet (PDF) ↓ Wiring diagram (PDF) ↓
