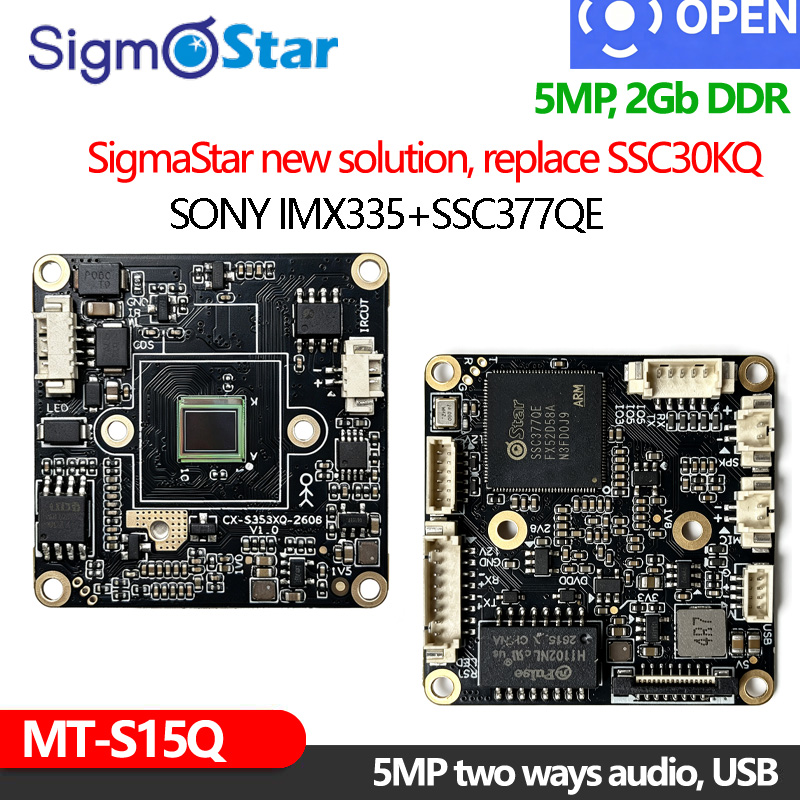

AI CAMERA MODULE

MT-S15Q

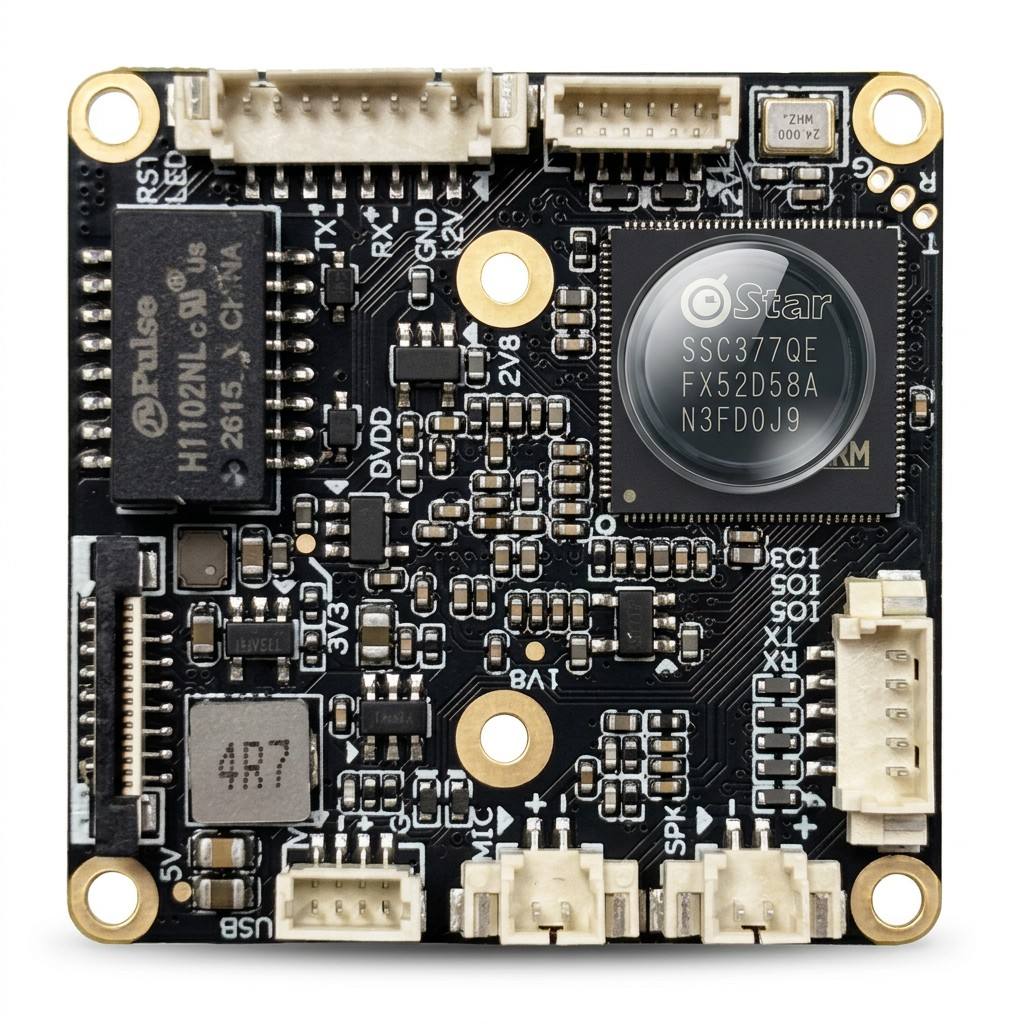

A 5MP 30fps AI module on the SigmaStar SSC377QE with 1TOPS of compute and the Sony IMX335. Human and vehicle classification, boundary and intrusion detection run on-board; dual light with smart dimming, two-way audio with echo cancellation, TF storage to 512GB and optional WiFi 6 or 4G — all on a 38×38mm board from −30°C to +65°C.

• Resolution5MP (2576 × 1944 @ 30fps)

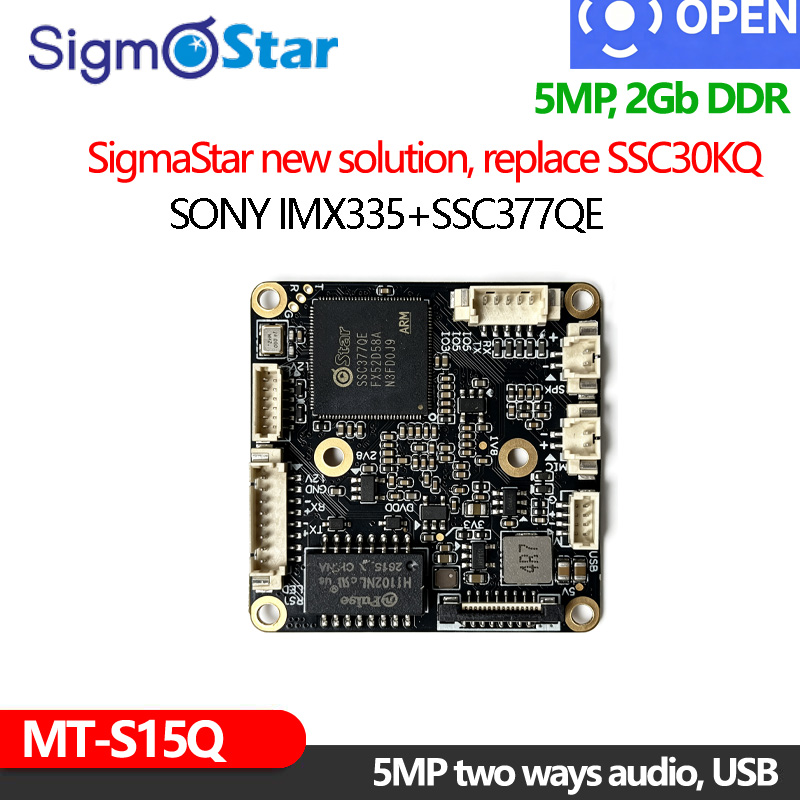

• SoCSigmaStar SSC377QE · 1TOPS · 2Gb DDR3

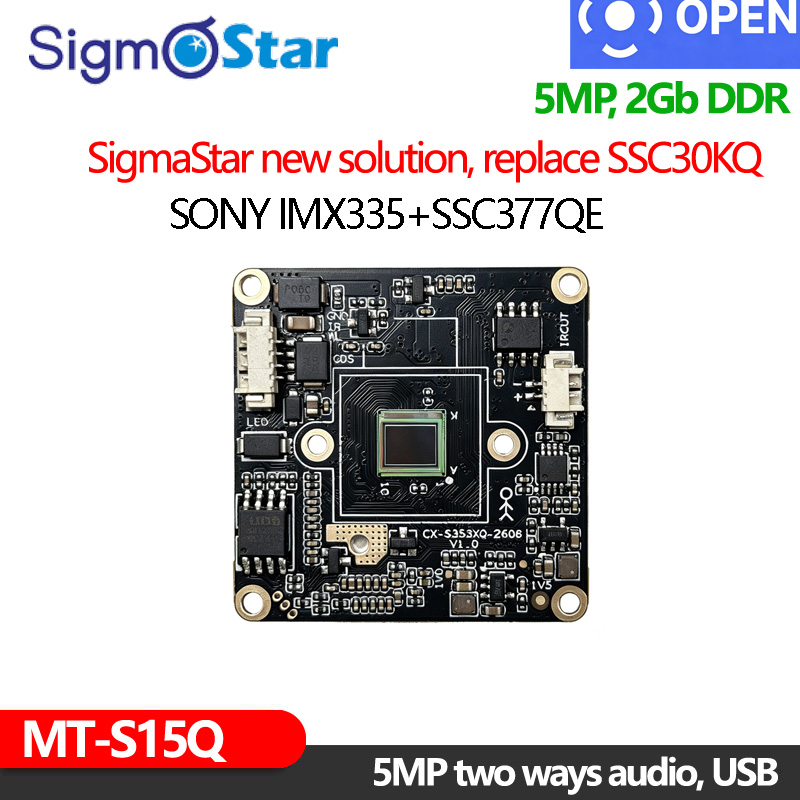

• SensorSony IMX335 · 1/2.8"
• VideoH.265+ / H.265 / H.264 dual stream
• AIHuman & vehicle classification · intrusion · boundary
• NightDual light · smart dimming
• AudioTwo-way intercom · echo cancellation
• StorageTF card to 512GB
• NetworkRJ45 100M · optional WiFi 6 / 4G
• ProtocolONVIF S/T/G/M

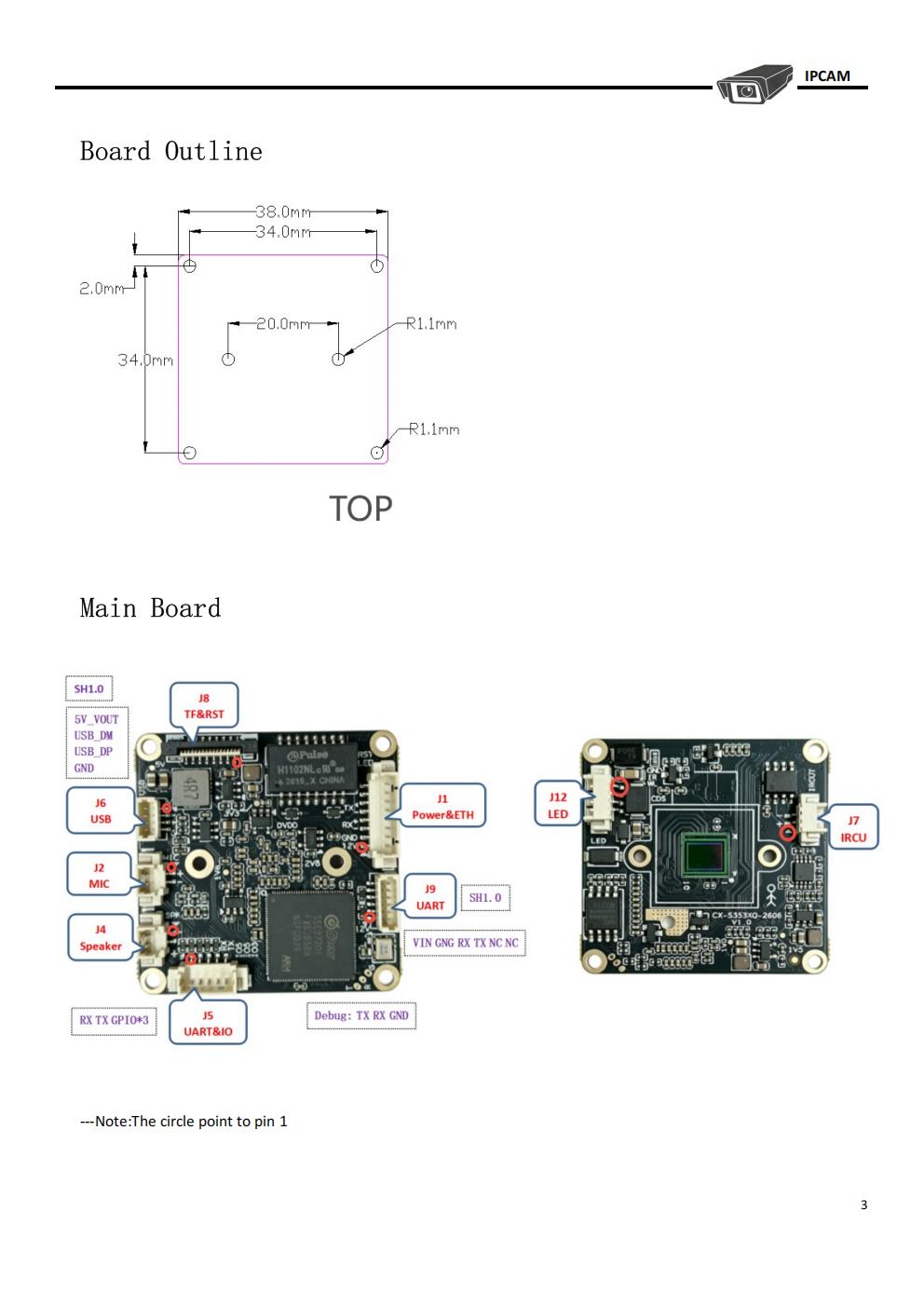

• Board38 × 38mm · DC 12V · −30…+65°C
